Product Inspection
Insulation and waterproofing materials
Belongs to the series:
Summary:

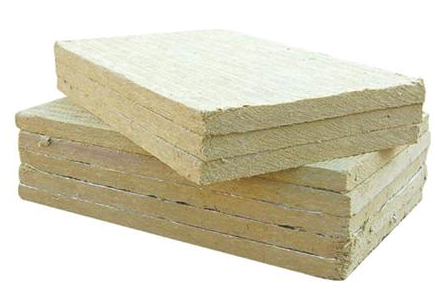

Insulation materials: rock wool boards and pipes, rubber and plastic insulation boards and pipes, glass wool, spray foam, insulated decorative panels, composite insulation boards, molded boards (EPS), extruded boards (XPS), polyurethane (PU), phenolic boards (PF), vacuum insulation boards, foam concrete, foamed cement boards, foam glass, expanded glass microspheres, inorganic perlite boards, various insulation mortars, etc.
Ningbo Shangdu Certification not only provides American FM, UL, EU CE certifications for building materials to a wide range of customers, but also offers testing reports required for exports to various countries.
Thermal insulation and waterproofing materials testing scope
1. Insulation materials: rock wool boards and pipes, rubber and plastic insulation boards and pipes, glass wool, spray foam, insulation decorative boards, composite insulation boards, molded boards (EPS), extruded boards (XPS), polyurethane (PU), phenolic boards (PF), vacuum insulation boards, foam concrete, foamed cement boards, foam glass, expanded glass microspheres, inorganic perlite boards, various insulation mortars, etc.
Testing items:Thermal conductivity, heat transfer coefficient, thermal resistance, moisture permeability, density, water absorption rate, moisture content, dimensional stability, bending performance, compression performance, tensile performance, compression permanent deformation, tear strength, combustion performance, sound absorption performance, sound insulation performance, phase change enthalpy, phase change temperature, etc.
2. Waterproof materials:

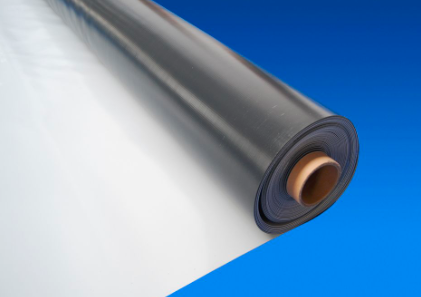

- Asphalt roll materials: SBS elastomer modified asphalt waterproof rolls, APP plastomer modified asphalt waterproof rolls, self-adhesive polymer modified asphalt waterproof rolls, modified asphalt waterproof rolls for bridges, root puncture resistant waterproof rolls, pre-laid/wet-laid waterproof rolls, load-bearing waterproof rolls, waterproof rolls with self-adhesive layers, petroleum asphalt waterproof rolls, polyethylene substrate waterproof rolls, flame-retardant waterproof rolls, asphalt waterproof underlay, etc.
- Polymer sheet materials: polymer waterproof sheets, (EVA/ECB/PE) plastic waterproof boards, (TPO) polyolefin waterproof rolls, (PVC) polyvinyl chloride waterproof rolls, chlorinated polyethylene waterproof rolls, polyethylene polypropylene composite waterproof rolls, (EPDM) ethylene propylene diene monomer waterproof rolls, polymer self-adhesive waterproof rolls, etc.
Testing items:Combustion performance, wind resistance, wind uplift resistance, foot traffic resistance, hail resistance, etc.
Overview of testing standards
ASTM E 84 "Test Method for Surface Burning Characteristics of Building Materials"
ASTM C356 "Test Method for Linear Shrinkage of Preheated High-Temperature Insulation Materials"
ASTM C447 "Maximum Use Temperature of Insulation Materials"
ASTM C411 "Standard Test Method for Thermal Performance of High-Temperature Insulation Materials"
ASTM C302 "Density and Dimensions of Insulated Prefabricated Pipe Shells"
ASTM C871 "Standard Test Method for Chemical Analysis of Insulation Materials for Leachable Chlorides, Fluorides, Silicates, and Sodium Ions"
ASTM C165 "Test Method for Measuring the Compressibility of Insulation Materials"
ASTM C177 "Standard Test Method for Steady-State Heat Flux and Thermal Conductivity Using Guarded Hot Plate Apparatus"
BS EN 13162 "Insulation Products for Buildings - Mineral Wool and Slag Wool"
EN 13472 "Insulation Products for Building Equipment and Industrial Installations - Determination of Short-Term Water Absorption by Immersion Method for Prefabricated Pipe Insulation"
EN 1604 "Insulation Products for Building Applications - Determination of Dimensional Stability Under Specified Conditions of Temperature and Humidity"
GBT 11835 "Rock Wool, Slag Wool and Their Products for Insulation"
GB/T 19686 "Insulation Products for Buildings - Rock Wool and Slag Wool"
GB/T 25975 "Rock Wool Products for External Wall Insulation"
GB50009-2001 "Code for Design of Building Structures Load"
CB/T 3830 "Marine Rock Wool and Its Products"
AS/NZS 4859 "Thermal Insulation Materials for Buildings"
JGJ 144-2004 "Technical Regulations for External Wall Insulation Engineering"
